Inverter 3KW Hybrid Deye 24v-230v LP1
Product details

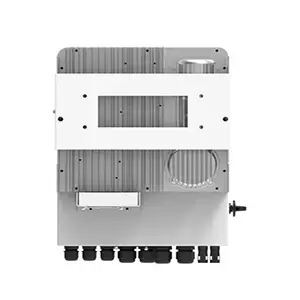

The 3Kw 24v SUN-3K-SG04LP1-24-EU model is a 3 kW single-phase hybrid inverter manufactured by Deye, designed for residential and light commercial applications. This equipment allows for efficient management of solar energy, combining photovoltaic generation with battery storage and connection to the electrical grid
|
Rated output power |
3.000 W |
|
Maximum photovoltaic input power |
4.800 W |
|
Battery voltage |
24V nominal (range ~21- 32V) |
|
Rated output power |
3.000 W |
|
MPPT |
1 follower, range ~125–425V |
|
Corriente max. de carga/descarga |
~120 A |
|
Compatibility |
24V lithium or lead-acid batteries |
|
WiFi and LCD screen integrated |
|
|
Off-grid mode and on-grid connection |
|
|
Power factor |
0,8 (advance or delay) |
|
Total Harmonic Distortion (THD) |
<3% |
|
Dimensions (H x W x D) |
433 x 330 x 248 mm |
|
Weight |
11,4 kg |
|
Protection level |
IP65 (suitable for outdoor use) |
|
Communication interface |
RS485 |
|

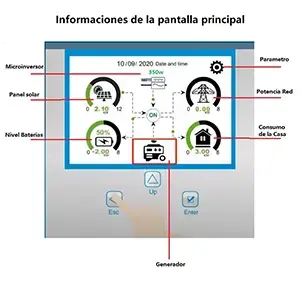

Screen |
Color touch LCD |
3.Featured Features
Hybrid operation: allows operation both connected to the grid and in isolated mode (off-grid).
Compatibility with diesel generators: can store energy from generators to ensure continuous supply.
Parallelization: supports up to 16 units in parallel, facilitating system scalability.
Intelligent battery management: It allows you to program up to 6 daily charging/discharging periods, optimizing usage according to electricity rates and energy needs.
Remote monitoring: Through the Deye iCloud platform, it is possible to remotely monitor and control the inverter, including firmware updates and parameter adjustments.
4.The Advantage of 3Kw Hybrid Plus
· Network Injection
· Zero injection
· Works with batteries
· Works without batteries
· P65 (Aows outdoor instaation)
· Teecommunications with a brands of ithium batteries
· 10 years warranty
· Works On grid and Off grid at the same time
· Works in parae between inverters
· Appications App (distance contro)
· Officia Teecommunications with ithium Batteries: Pyontech, Dyness ETC..
· Wi-Fi
· Coor touch CD, IP65 protection grade
· 6 time periods to charge/discharge the battery
· Max. 120A charge/discharge current
· Frequency drop contro, Max.16pcs parae
· DC pair and AC pair to retrofit existing soar system
· Support diese generator energy storage
· 24V ow votage battery, safe and reiabe.
· Unique smart charging app and grid peak reduction function
· 4ms fast transfer from grid-connected to off-grid mode, ensuring traditiona fixed frequency air conditioner works we
Security and protection
1.DC reverse polarity protection
2.Overcurrent and overvoltage protection on AC output
3.Thermal protection and ground fault monitoring
4.Type II surge protection on DC and AC sides
5.Compliance with international safety and EMC standards, such as IEC/EN 62109-1 and IEC/EN 62109-2
This inverter is ideal for installations in regions like Andalusia, where high solar irradiation allows for maximizing photovoltaic generation. Its ability to operate in stand-alone mode makes it especially useful in areas with unstable power supplies or for backup

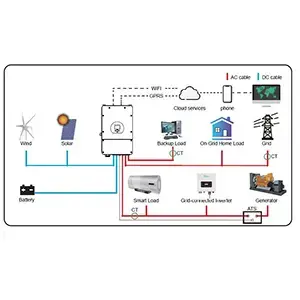

Operation
Traditionally, in isolated solar installations, the inverter generates an alternating current network and acts as the network manager. Control the flow of energy between the grid and the batteries.
Back Up Mode:
This type of system is designed for places where the network goes down frequently and for a long time; When this happens, the hybrid inverter operates connected to the alternating grid in order to guarantee an energy source, the inverter is dedicated to keeping the batteries charged during times when there is a grid, and when it drops, the inverter takes the energy. of the batteries in order to be able to get through the hours when the network is out.
Self-consumption mode:
This is the way we will usually use this inverter, it is about consuming the energy directly from the panels while we have sun at that moment, in the event that the panels produce more energy than we are consuming, these are used to charge the batteries , in order to be used during night hours.
Sell mode:
Inverter allows you to sell energy from solar panels or batteries to an electric company, you can program the power you want to sell and the time you want to sell both at night or by day. At the same time you can buy electric light from this electric company by day or at night and power What do you want to buy?
