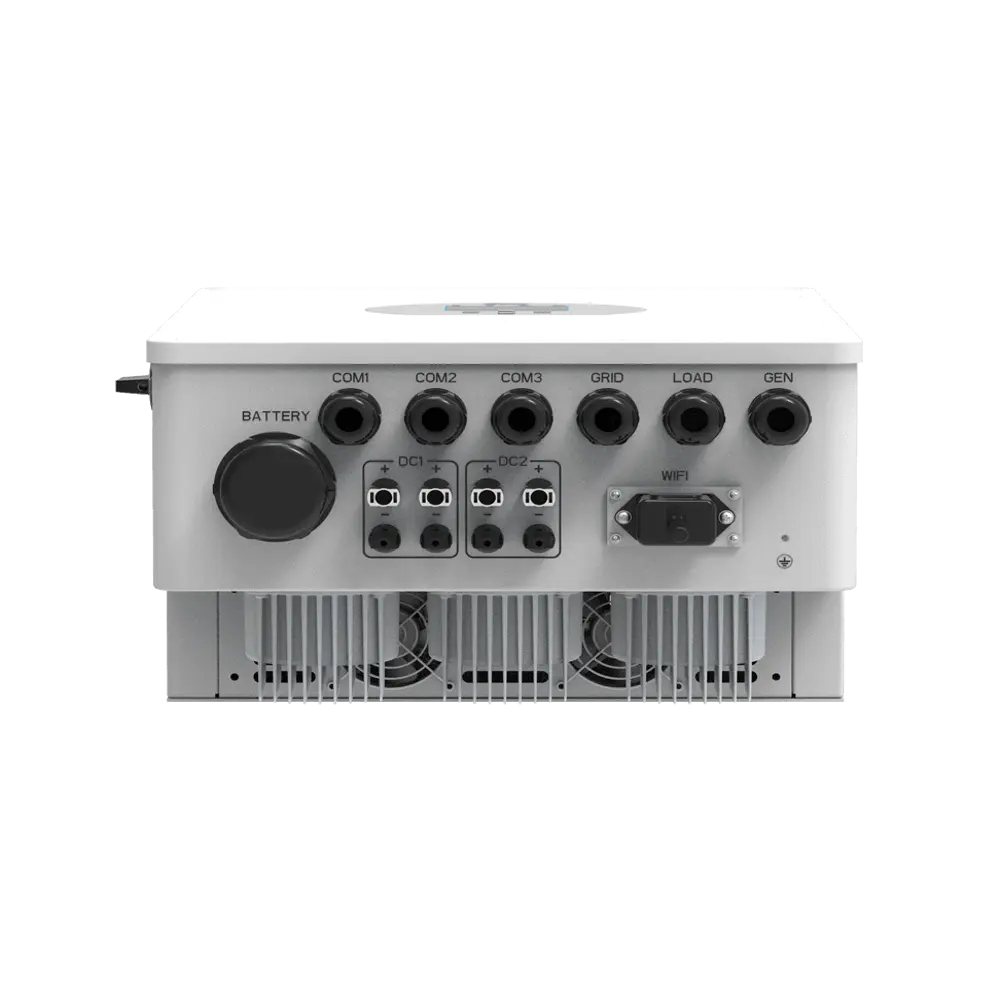

Inverter 30KW 380V HYBRID DEYE HP3 HV

The SUN-30K-SG01LP3-EU inverter allows you to combine the production of solar panels with the electrical grid and batteries, so it acts as an intelligent energy manager that prioritizes the consumption of the photovoltaic installation and guarantees that the home has an energy supply always either from solar panels or from the electrical grid. In addition, the SUN-30K-SG01LP3-EU inverter can be connected to batteries that work between 160V-800V to store the surplus energy produced by the solar panels and have energy autonomy also on days with less solar radiation and night hours, so reduces dependence on the electrical grid, that is, the SUN-30K-SG01LP3-EU combines grid, direct energy from solar panels and batteries, becoming a very efficient manager for self-consumption installations.

Deye hybrid inverters have a “smart load” output that can be configured to divert surpluses to consumption in order to take full advantage of solar production. For example, with the default configuration, the smart load output is energized and supplies consumption when the battery is between 100 and 95% and the solar production is greater than 100w.

If the SUN-30K-SG01LP3-EU inverter has a Wi-Fi internet connection, a Wifi Plus accessory can be installed that allows monitoring of the operation, performance and history of the photovoltaic installation from any mobile device.

In order to monitor the Inverter's self-consumption, the wattmeter is responsible for measuring the required consumption at all times. If you have a surplus compensation contract, the inverter can be configured to discharge or not depending on our needs. The SUN-30K-SG01LP3-EU inverter is compatible with all types of high voltage batteries 160-800VDC
The Advantage of Sun- 30K Hybrid Plus

· Lithium BMS Brands Compatibility List

· 100% unbalanced output, each phase Maximum output up to 50% of rated power

· DC couple and AC couple to upgrade existing solar system

· Maximum 10 pieces in parallel for on-grid and off-grid operation Supports multiple batteries in parallel

· Maximum charge/discharge current of 37A

· High voltage battery, higher efficiency.

· 6 time periods for battery charging/discharging

· Support diesel generator energy storage

· 3-MPPT

· Network Injection

· Zero injection

· Works with batteries

· Works without batteries

· P65 (Allows outdoor installation)

· Telecommunications with all brands of Lithium batteries

· 10 years warranty

· Entrance with solar panel

· Works On grid and Off grid at the same time

· Works in parallel between inverters

· Applications App (distance control)

· Official Telecommunications with Lithium Batteries: Pylontech, Dyness HIGH VOLTAGE 160-700VDC ETC….

· Wi-Fi

· 160-700VDC high voltage battery, transformer isolation design

· 6 time periods to charge/discharge the battery

· Max. 50A+50A charge/discharge current

· DC pair and AC pair to retrofit existing solar system

· Support diesel generator energy storage

· Unique smart charging app and grid peak reduction function

The Product Includes

· Converter

· Hanging panel

· Installation screws M4*20 stainless steel

· AC connector

· MC4 Connector

· M6*80 expansion bolt 4

· Current sensor for zero flow

· User Manual

· stamp panel

· Wifi-Plug 

Technical Data Sheet SUN-30K-SG01LP3-EU

· Inverter Data SUN-30K-SG01LP3-EU

· Input voltage range 450V (150V~800V)

· Battery system 160 ~ 800 V (high voltage type)

· Maximum input power 39000W

· maximum output power 33000W

· Nominal voltage 230/400Vac Three-phase

· Rated voltage range 150V-850V

· Frequency range 50/60 Hz,

· Output waveform Pure sine wave

· characteristic data

· MPPT efficiency 99%

· Overvoltage protection yes

· About temperature protection yes

· Reverse polarity protection yes

· Anti-island protection yes

· Stackable via AC outlet only

· Operating temperature range -40C to +60C

· IP65 ingress protection

· Cooling Smart cooling

· Operating altitude without reduction 2000 Meters

· 10 year warranty

· Type: DC/AC Inverters

· Specification: 560W×950H×320D

· Weight 55KG

Protecciones

· Photovoltaic input lightning protection:

· Integrated

· Anti-island protection

· Integrated

· Photovoltaic string input reverse polarity protection

· Integrated

· Insulation resistance detection

· Integrated

· Residual current monitoring unit

· Integrated

· Output overcurrent protection

· Integrated

· Output short circuit protection

· Integrated

· Output overvoltage protection

· Integrated

· surge protection

· DC Type II / AC Type II
