Inverter 20KW 380V Hybrid Plus Grid Injection with Zero Deye Discharge
Product details

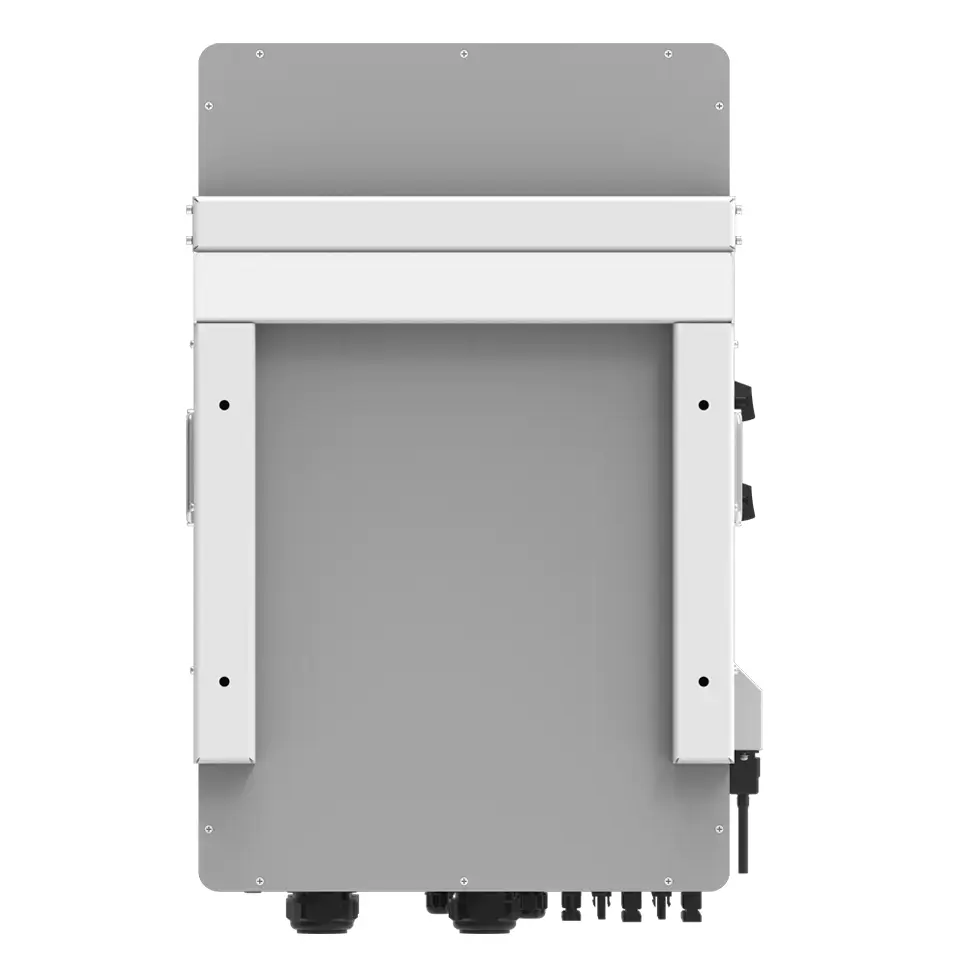

The SUN-20K-SG01LP3-EU inverter allows you to combine the production of solar panels with the electrical grid and batteries, so it acts as an intelligent energy manager that prioritizes the consumption of the photovoltaic installation and guarantees that the home has an energy supply always either from solar panels or from the electrical grid. In addition, the SUN-20K-SG01LP3-EU inverter can be connected to batteries that work between 160V-700V to store the surplus energy produced by the solar panels and have energy autonomy also on days with less solar radiation and night hours, so reduces dependence on the electrical grid, that is, the SUN-20K-SG01LP3-EU combines grid, direct energy from solar panels and batteries, becoming a very efficient manager for self-consumption installations.
Deye hybrid inverters have a “smart load” output that can be configured to divert surpluses to consumption in order to take full advantage of solar production. For example, with the default configuration, the smart load output is energized and supplies consumption when the battery is between 100 and 95% and the solar production is greater than 100w.
2. Monitoring
If the SUN-20K-SG01LP3-EU inverter has a Wi-Fi internet connection, a Wifi Plus accessory can be installed that allows monitoring of the operation, performance and history of the photovoltaic installation from any mobile device.
3.PouringIf the SUN-20K-SG01LP3-EU inverter has a Wi-Fi internet connection, a Wifi Plus accessory can be installed that allows monitoring of the operation, performance and history of the photovoltaic installation from any mobile device.
4.Technical DataThe Advantage of Sun- 20KW Hybrid Plus
· Lithium BMS Brands Compatibility List
· 100% unbalanced output, each phase Maximum output up to 50% of rated power
· DC couple and AC couple to upgrade existing solar system
· Maximum 10 pieces in parallel for on-grid and off-grid operation Supports multiple batteries in parallel
· Maximum charge/discharge current of 37A
· High voltage battery, higher efficiency.
· 6 time periods for battery charging/discharging
· Support diesel generator energy storage
· 2/2-MPPT
· Network Injection
· Zero injection
· Works with batteries
· Works without batteries
· P65 (Allows outdoor installation)
· Telecommunications with all brands of Lithium batteries
· 10 years warranty
· Entrance with solar panel
· Works On grid and Off grid at the same time
· Works in parallel between inverters
· Applications App (distance control)
· Official Telecommunications with Lithium Batteries: Pylontech, Dyness HIGH VOLTAGE 160-700VDC ETC….
· Wi-Fi
· 160-700VDC high voltage battery, transformer isolation design
· 6 time periods to charge/discharge the battery
· Max. 37A charge/discharge current
· DC pair and AC pair to retrofit existing solar system
· Support diesel generator energy storage
· Unique smart charging app and grid peak reduction function
The Product Includes:
· Converter
· Hanging panel
· Installation screws M4*20 stainless steel
· AC connector
· MC4 Connector
· M6*80 expansion bolt 4
· Current sensor for zero flow
· User Manual
· stamp panel
Technical Data Sheet SUN-20K-SG01LP3-EU
· Inverter Data SUN-20K-SG01LP3-EU
· Input voltage range 450V (150V~800V)
· Battery system 160 ~ 700 V (high voltage type)
· Maximum input power 26000W
· maximum output power 22000W
· Nominal voltage 230/400Vac Three-phase
· Rated voltage range 150V-850V
· Frequency range 50/60 Hz,
· Output waveform Pure sine wave
· characteristic data
· MPPT efficiency 99%
· Overvoltage protection yes
· About temperature protection yes
· Reverse polarity protection yes
· Anti-island protection yes
· Stackable via AC outlet only
· Operating temperature range -40C to +60C
· IP65 ingress protection
· Cooling Smart cooling
· Operating altitude without reduction 2000 Meters
· 10 year warranty
· Type: DC/AC Inverters
· Specification: 440W×680H×260D
· Weight 55KG
