Inverter Solis HIBRID S6-EH3P15K-H (15KW) Three-phase
Product details
Models |
12K |
15K |
20K |
Input DC (PV side) | |||
Recommended max. PV array size |
24 KW |
30 KW |
40 KW |
Max. usable PV input power |
19.2 KW |
24 KW |
32 kW |
Max. input voltage |
|
1000 V |
|
Rated voltage |
|
600 V |
|
Start-up voltage |
|
160 V |
|
MPPT voltage range |
|
200 – 850 V |
|
Max. input current |
|
4 × 20 A |
|
Max. short circuit current |
|
4 × 30 A |
|
MPPT number / Max. input strings number |
|
4 / 4 |
|
Battery | |||
Battery type |
|
Li-Ion |
|
Battery voltage range |
|
120 – 800 V |
|
Max. charge / discharge power |
12 KW |
15KW |
20 KW |
Max. charge / discharge current |
|
50 A |
|
Communication |
|
CAN /RS485 |
|
Output AC (Grid side) |
|
||
Rated output power |
12 KW |
15 KW |
20 KW |
Max. apparent output power |
12 KVA |
15 KVA |
20 KVA |
Rated grid voltage |
|
3/N/PE, 220 V / 380 V, 230 V / 400 V |
|
Rated grid frequency |
|
50 Hz / 60 Hz |
|
Rated grid output current |
18.2 A / 17.3 A |
22.8 A / 21.7 A |
30.4 A / 28.9 A |
Max. output current |
18.2 A / 17.3 A |
22.8 A / 21.7 A |
30.4 A / 28.9 A |
Power factor |
|
> 0.99 (0.8 leading - 0.8 lagging) |
|
THDi |
|
<3% |
|
Input AC (Grid side) |
|
||
Input voltage range |
|
304 - 437 V / 320 - 460 V |
|
Max. input current |
27.3 A / 26.0 A |
34.2 A / 32.5 A |
45.6 A / 43.3 A |
Rated grid frequency |
|
50 Hz / 60 Hz |
|
Frequency range |
|
45 - 55 Hz / 55 - 65 Hz |
|
Input Generator |
|
||
Max. input power |
12 KW |
15 KW |
20 KW |
Max. input current |
18.2 A / 17.3 A |
22.8 A / 21.7 A |
30.4 A / 28.9 A |
Rated input frequency |
|
50 Hz / 60 Hz |
|
Output AC (Back-up) |
|
||
Rated output power |
12 KW |
15 KW |
20 KW |
Max. apparent output power |
|
2 times of rated power, 10 s |
1.6 time of rated power, 10 s |
Back-up switch time |
|
<10 ms |
|
Rated output voltage |
|
3/N/PE, 220 V / 380 V, 230 V / 400 V |
|
Rated frequency |
|
50 Hz / 60 Hz |
|
Rated output current |
18.2 A / 17.3 A |
22.8 A / 21.7 A |
30.4 A / 28.9 A |
THDv (@linear load) |
|
< 3% |
|
Efficiency | |||
Max. efficiency |
|
97.7% |
|
EU efficiency |
|
97.5% |
|
BAT charged by PV max. efficiency |
|
98.5% |
|
BAT charged / discharged to AC max. efficiency |
|
97.2% |
|
Protection | |||
Anti-islanding protection |
|
Yes |
|
Output over current protection |
|
Yes |
|
Short circuit protection |
|
Yes |
|
Integrated AFC1 2.0 |
|
Optional |
|

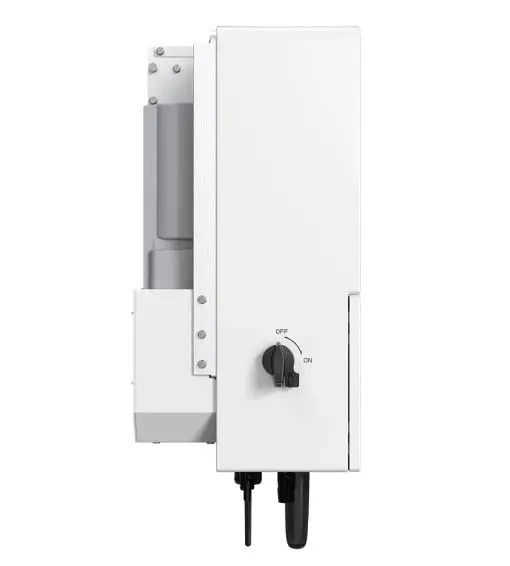

Integrated DC switch |
|
Yes |
|
DC reverse-polarity protection |
|
Yes |
|
PV over voltage protection |
|
Yes |
|
Battery reverse protection |
|
Yes |
|
General Data | |||
Max. allowable phase imbalance (grid & back-up) |
|
100% |
|
Max. power per phase (grid & back-up) |
50% rated power |
|
40% rated power |

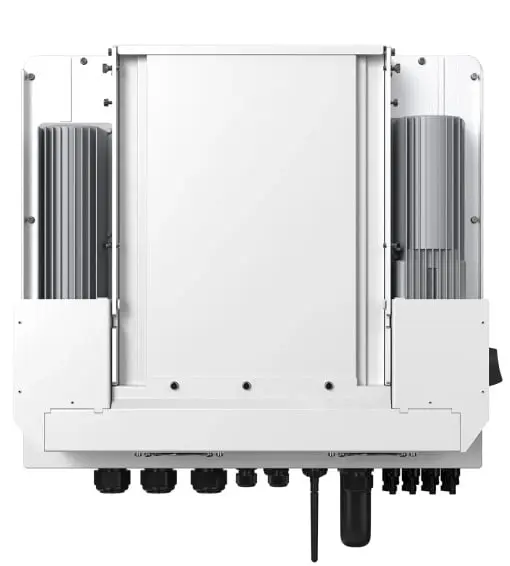

Dimensions (W × H × D) |
|
563 × 546 × 250 mm |
|
Weight |
|
35.2 kg |
|
Topology |
|
Transformers |
|
Self-consumption (night) |
|
< 25 V |
|
Operating ambient temperature range |
|
-25 ~ 60°C |
|
Relative humidity |
|
0 - 95% |
|
Ingress protection |
|
IP66 |
|
Noise emission (typical) |
|
<65 dB(A) |
|
Cooling concept |
|
Intelligent fan-cooling |
|
Max. operation altitude |
|
2000 m |
|
Grid connection standard |
|
EN 50549-1/-10, VDE4105, CE10-21, CE10-16, NCI-RFG TypeB, NRS 097-2-1, LTU-1, G99, PEA |
|
Safety / EMC standard |
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
|

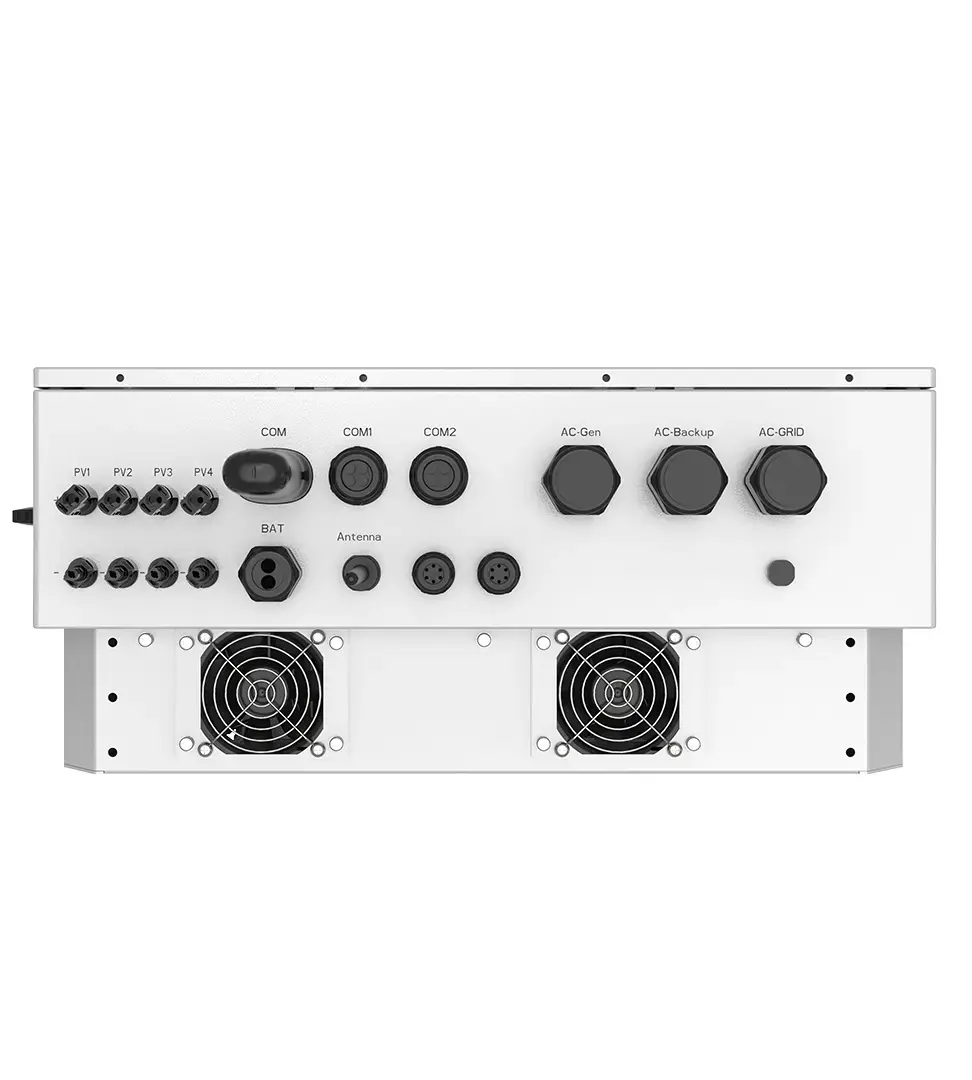

Features | |||
PV connection |
|
MC4 connector |
|
Battery connection |
|
OT terminal |
|
AC connection |
|
OT terminal |
|
Display |
|
7.0" LCD display & Bluetooth + APP |
|
Communication |
|
CAN, RS485, Ethernet, Optical: Wi-Fi, Cellular, LAN |
|
Why choose this product?
✔ Maximum versatility: Designed for large and complex PV storage systems, with support for parallel operation of multiple inverters and generator integration.
✔ Impressive Power: Supports peak power for 10 seconds with 200% overload, making it ideal for scenarios with high power requirements.
✔ Exceptional Compatibility: Accepts unbalanced three-phase and half-wave loads, ensuring consistent and reliable power under all conditions.
✔ Innovative design: 4 MPPT technology enables optimisation of captured solar energy, making it perfect for large or complex roofs with multiple orientations.
⚡ Technology that brings you into the future:
· Smart consumption control: Two backup ports for critical and non-critical loads, so you prioritise energy where it matters most.
· SG heat pump compatibility: Integrate seamlessly with the most efficient heating systems.
· Advanced Protection: Detects mains and generator voltage to prevent reverse current damage.
A step towards sustainability:
The S6-EH3P(12-20)K-H series is designed for those who want to minimise their environmental impact and ensure energy independence. With a maximum input capacity of 20A, this inverter is compatible with all high-power photovoltaic modules, regardless of brand.
The decision that gives you freedom:
Whether you choose the 12kw, 15kw or 20kw version, this inverter will transform your home or business into an efficient power plant, giving you the peace of mind of knowing you'll no longer be dependent on the grid.
Contact us now to find out how the S6-EH3P(12-20)K-H series can make your life easier!
