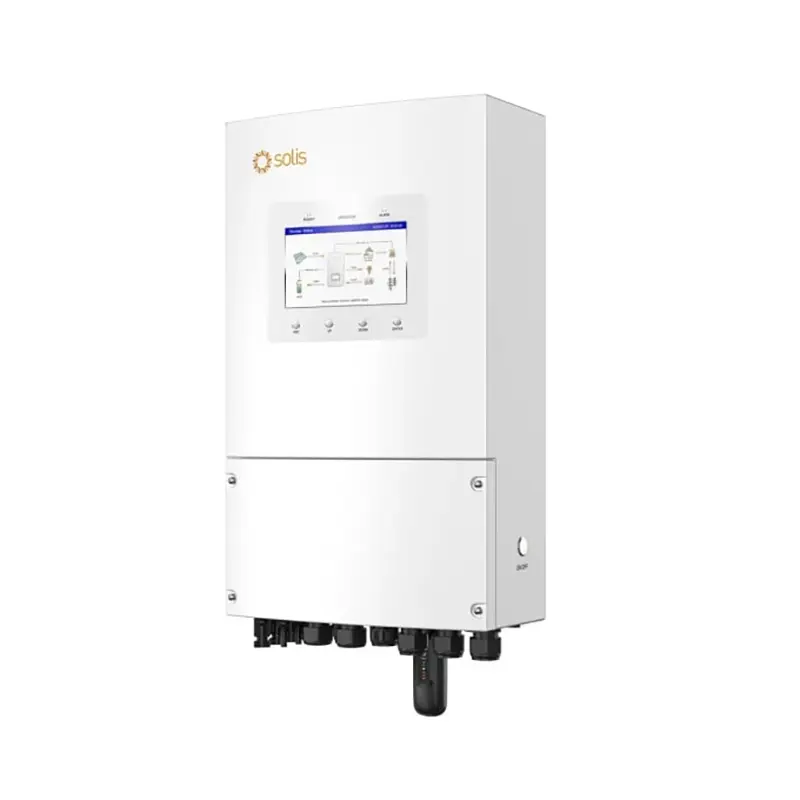

Inverter Solis HIBRID S6-EH1P8K-L-PLUS (8KW) Single Phase
Product details
Models |
3K |
3.6K |
5K |
6K |
8K |
Input DC (PV side) | |||||
Recommended max. PV array size |
6kW |
7.2kW |
10kW |
12kW |
16 kW |
Max. usable PVinpul power |
4.8 kW |
5.76kW |
8 kW |
9.6kW |
12.8kW |
Max.input voltage |
500V |
||||
Rated voltage |
330V |
||||
Start-up voltage |
90V |
||||
MPPT vollage range |
90 435V |
||||
Max.input current |
16A/16A |
32A/32A |
|||
Max. short circuit current |
20A/20A |
40A/40A |
|||
MPPT number / Max. input strings number |
2/2 |
2/4 |
|||
Battery | |||||
Battery type |
Li-ion / Lead-acid |
||||
Battery voltage range |
40-60V |
||||
Max, charge / discharge power |
3kW |
3.6 kW |
5kW |
6kW |
8kW |
Max. charge / discharge current |
70A |
80A |
112A |
135 A |
190A |
Communication |
CAN / RS485 |
||||
Output AC (Grid side) | |||||
Rated output power |
3 kW |
3.6 kW |
5 kw |
6 kW |
8kW |
Max. apparent output power |
3kVA |
3.6 kVA |
5 kVA |
6kVA |
8 kVA |
Operation phase |
L/N/PE |
||||
Rated grid voltage |
220 V / 230 V |
||||
Rated grid frequency |
50Hz /60Hz |
||||
Rated grid output current |
13.7A/13.1A |
16.4A/15.7A |
22.8A / 21.8A |
27.3A/26.1A |
36.1 A / 34.8 A |
Max.output current |
13.7A/13.1A |
16.4A/15.7A |
22.8A/21.8A |
27.3A/26.1A |
36.4A/34.8A |
Power factor |
>0.99 (0.8 leading-0.8 lagging) |
||||
1HDi |
<2% |
||||
Input AC (Grid side) | |||||
Input voltage range |
187-253V |
||||
Max.input current |
21A |
25A |
32 A |
40A |
50 A |
Irequency range |
45-55 Hz /55- 65 Hz |
||||
Output AC (Back-up) | |||||
Rated output power |
3 kW |
3.6 kW |
5 kW |
6kW |
8 kW |
Max. apparent output power |
2 times of rated power, 10s |
||||
Back-up switch time |
<4ms |
||||
Rated output vollage |
L/N/PE,220V/230V |
||||
Rated frequency |
50 Hz / 60 Hz |
||||
Rated output current |
13.7A/13.1A |
16.4A/15.7A |
228A/2L8A |
27.3A/26.1A |
36.4A/34.8A |
Max. AC passthrough current |
35A |
35A |
40A |
40A |
50A |
THDv (@linear load) |
<2% |
||||
Efficiency | |||||
Max.efliciency |
96.2% |
||||
EU efficiency |
96.1% |
||||
BAT charged by PV / AC max. efficiency |
95.3%/93.9% |
||||
BAT discharged to AC max. efficiency |
93.8% |
||||
Protection | |||||
Ground lault monitoring |
Yes |
||||
DC reverse-polarity protection |
Yes |
||||
Integrated AFCI 2.0 |
Optional |
||||
Protection class / Over voltage category |
I/II (PV and BAT), III (MAINS and BACKUP and GEN) |
||||
General Data | |||||
Dimensions (WxHxD) |
335x560x253 mm |
||||
Weight |
23kg |
23.5kg |
|||
Topology |
High frequency isolation (for battery) |
||||
Operating ambient temperature range |
-40-+60℃ |
||||
Ingress protection |
IP66 |
||||
Cooling concept |
Natural cooling |

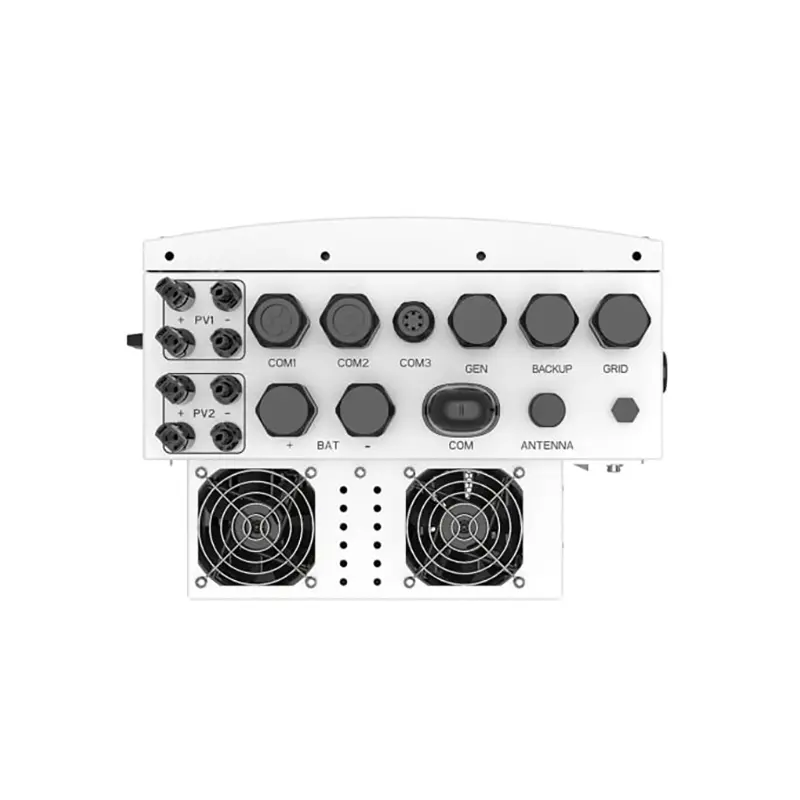

Intelligent fan-cooling |
|||
Max. operation altitude |
3000m |
||||
Grid connection slandard |
NRS097-2-1,IEC62116,IEC61727,IEC 60068,IEC61683,EN 50530,MEA,PEA,NBR16149,NBR16150 |
||||
Safety / EMC standard |
IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
||||
Features | |||||

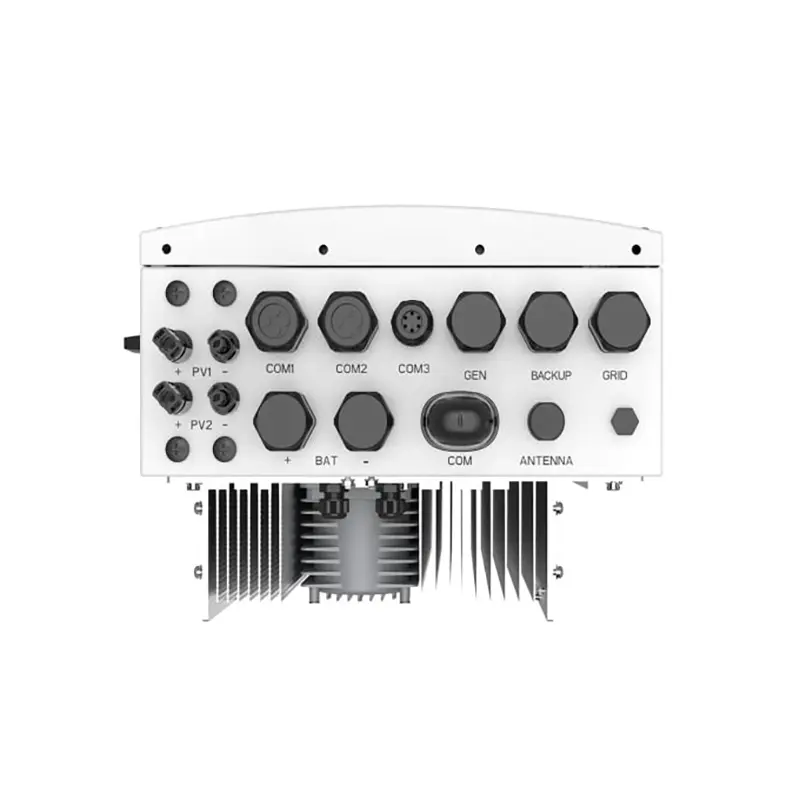

DC connection |
MC4 plug (PVport) / Terminal Block (BAT port) |
||||
AC connection |
Terminal Block |
||||

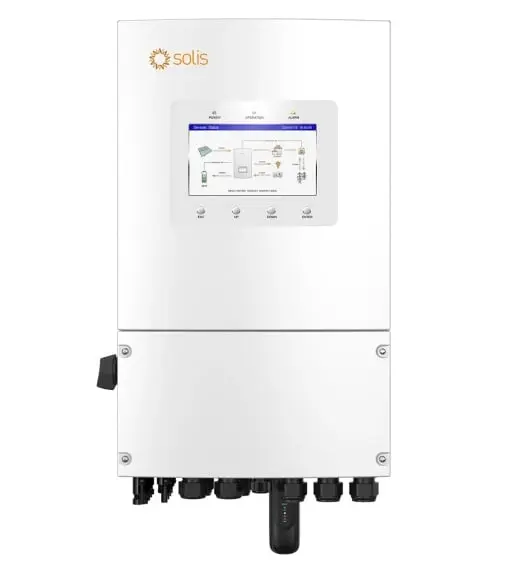

Display |
7.0"LCD display & Bluetooth +APP |
||||
Why choose this product?
✔ Power tailored to your needs: Available in 3K, 3.6K, 5K, 6K and 8K versions, supporting up to 32A MPPT current, compatible with high power solar panels.
✔ Advanced battery protection: built-in battery treatment and protection functions for extended battery life and optimum performance.
✔ Power to Scale: Multiple inverters can work together, forming single-phase or three-phase systems with up to 48kW total power.
Ready for any situation:
· Have you faced power outages? With the UPS function, automatic switching from mains to backup takes less than 4ms, so you won't even notice a moment's interruption.
· Smart consumption: Dual ports control essential and non-essential tasks, so you prioritise power where it matters most.
· Generator compatibility: You can extend backup time even during extended power outages.
⚡ Performance that surprises you:
200% overload capability for 10 seconds, for those times when you need extra power.
Exceptional power stability, regardless of fluctuations from the mains or generator.
The decision that transforms your home:
With the S6-EH1P(3-8)K-L-PLUS series, your home becomes independent, smart and ready to meet any energy challenge. Choose to always stay one step ahead, save energy and protect the environment.
