GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED
GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED
GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED
GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED
GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED

GEL BATTERY FOR GOLF CARTS,YACHTS,BOATS,ELECTRIC VEHICLES,FORKLIFTS,TRICYCLES,FOR WHEEL CARS,FLOOR WASHERS-VALVE REGULATED SEALED

Voltage range: 6V/8V/12V

Capacity range: 20Ah-150Ah (25℃)

Low self-discharge rate: 25℃, less than 2% per month

Cycle times: 25℃, 30% depth of discharge: 1700 times

50% discharge depth: 800 times

100% discharge depth: 400 times

Long design life (25℃): 10 years of floating charge life

Applicable ambient temperature: -15-50℃

Working temperature range: -20-50℃

Suggested working temperature: 25℃

    Contact Us
    Product Details

    Technical Features

    Dking Power vehicle battery series adopt rare earth alloy grid structure and high temperature and high humidity curing process. The plates are resistant to high temperature and corrosion, high specific energy, large capacity, strong power, high safety, and longer cycle life.

    Application

    Electric bicycles, electric motorcycles, electric tricycles, electric toy cars, electric tools, electric strollers, golf carts, etc.
    Motive-Gel-BatteryMotive-Gel-Battery1
    Model Voltage（V) Capacity(Ah) Weight（Kg） Dimension（mm)
    Length Width Height Total Height
    KG LBS mm inch mm inch mm inch mm inch
    Medium and Large Batteries
    3-EVF-220 6V 200 35.8 78.92 260 10.24 180 7.09 271 10.67 274 10.79
    3-EVF-200B 6V 200 33.9 74.74 260 10.24 180 7.09 271 10.67 274 10.79
    4-EVF-150A 8V 150 36 79.37 260 10.24 180 7.09 280 11.02 280 11.02
    4-EVF-150B 8V 150 34.2 75.4 260 10.24 180 7.09 280 11.02 280 11.02
    6-EVF-60 12V 60 20 44.09 262 10.31 165 6.5 170 6.69 170 6.69
    6-EVF-71.8 12V 71.8 23.7 52.25 260 10.24 168 6.61 215 8.46 215 8.46
    6-EVF-80 12V 80 26.2 57.76 260 10.24 168 6.61 215 8.46 215 8.46
    6-EVF-100 12V 100 32.2 70.99 330 12.99 171 6.73 214 8.43 216 8.5
    6-EVF-120F 12V 100 36 79.37 407 16.02 171 6.73 240 9.45 240 9.45
    6-EVF-108 12V 108 34.2 75.4 330 12.99 171 6.73 214 8.43 216 8.5
    6-EVF-120 12V 120 41 90.39 407 16.02 171 6.73 240 9.45 240 9.45
    6-EVF-135 12V 135 45.8 100.97 341 13.43 172 6.77 281 11.06 281 11.06
    6-EVF-150 12V 150 50.5 111.33 484 19.06 170 6.69 240 9.45 240 9.45
    Model Voltage（V) Capacity(Ah) Weight（Kg） Dimension（mm)
    Length Width Height Total Height
    KG LBS mm inch mm inch mm inch mm inch
    Small Batteries
    6-DZM-20A 12V 20 6.5 14.33 181 7.13 77 3.03 170 6.69 170 6.69
    6-EVF-32A 12V 32 9.7 21.38 267 10.51 77 3.03 175 6.89 175 6.89
    6-EVF-38A 12V 38 11.2 24.69 222 8.74 106 4.17 171 6.73 171 6.73
    6-EVF-45A 12V 45 12.8 28.22 224 8.82 120 4.72 175 6.89 175 6.89
    6-EVF-52A 12V 52 14.4 31.75 224 8.82 135 5.31 178 7.01 178 7.01
    6-EVF-58A 12V 58 15.8 34.83 224 8.82 149 5.87 178 7.01 178 7.01
    6-DZF-22.8 12 22.8 6.9 15.21 181 7.13 77 3.03 170 6.69 170 6.69
    6-EVF-34.8 12 34.8 10.2 22.49 267 10.51 77 3.03 175 6.89 175 6.89
    6-EVF-39.8 12 39.8 11.8 26.01 222 8.74 106 4.17 171 6.73 171 6.73
    6-EVF-46.8 12 46.8 13.6 29.98 224 8.82 120 4.72 175 6.89 175 6.89
    6-EVF-53.8 12 53.8 15.2 33.51 224 8.82 135 5.31 178 7.01 178 7.01
    6-EVF-59.8 12 59.8 16.8 37.04 224 8.82 149 5.87 178 7.01 178 7.01

    Applications

    Recommended matching motor and applicable vehicle type for battery
    System Voltage Battery Model Maximum Motor Power(kw) Working Hours (h) Approximate mileage(km) Applications
    24V 6-EVF-60 0.85 2--3 40-70 Generally applicable to medical equipment, small floor washers, small lifting machinery, electric wheelchairs, and electric production tools24V
    6-EVF-70
    6-EVF-80 0.9 2--3
    6-EVF-100 1.2 2.5--3 60-80
    6-EVF-100F
    6-EVF-120 1.4 2.5--3 70-90
    6-EVF-120F 1.2 2.5--3 60-80
    6-EVF-130 1.2 2.5--3 70-90
    6-EVF-150 1.8 2--3 80-100
    4-EVF-150 1.8 2--3 80-100
    4-EVF-150F 1.8 2--3 80-100
    3-EVF-200 2 2--3 90--120
    3-EVF-180 2 2--3 90-110
    48V 6-EVF-60 1.5 2.5-3.5 50-80 Small electric tricycles

    48V
    6-EVF-70 50-80
    6-EVF-80 60-90
    6-EVF-100 2 2.5-3.5 90-120 Mini electric four-wheel vehicle

    48V1
    6-EVF-100F
    6-EVF-120F
    6-EVF-120 2.5 2.5-3.5 90-130 Mini electric car

    48V2
    6-EVF-130
    6-EVF-150 3 2.5-4 100-130 Industrial floor washer, logistics forklift

    48V3
    4-EVF-150
    4-EVF-150F
    3-EVF-200 3.2 2.5-4 110-140
    3-EVF-180
    60V 6-EVF-60 1.5 3--4.5 100--150 Heavy duty three and four wheeled vehicles

    60V1
    6-EVF-70
    6-EVF-80
    6-EVF-100 2.5 3--4 110--150 110--150 A0 electric vehicle

    60V
    6-EVF-100F
    6-EVF-120F
    6-EVF-120 3 3--4 120--160
    6-EVF-130
    6-EVF-150 5 3--4 130--160
    3-EVF-200 130--170
    3-EVF-180
    72V 4-EVF-150 7 3--4 140--170 Electric logistics vehicle

    72V2
    3-EVF-200 160--190
    3HR Discharge Curve Motive-Gel-Battery4

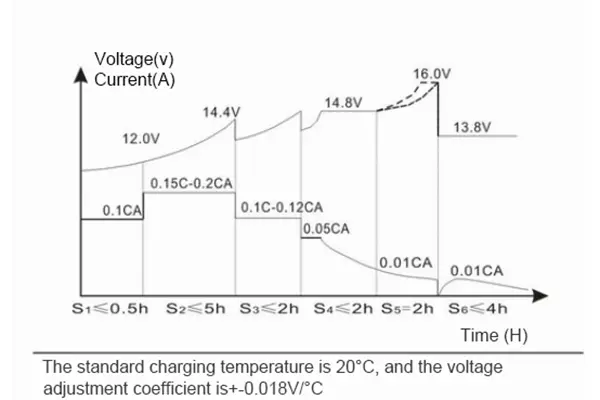

    Charge Curve Motive-Gel-Battery3

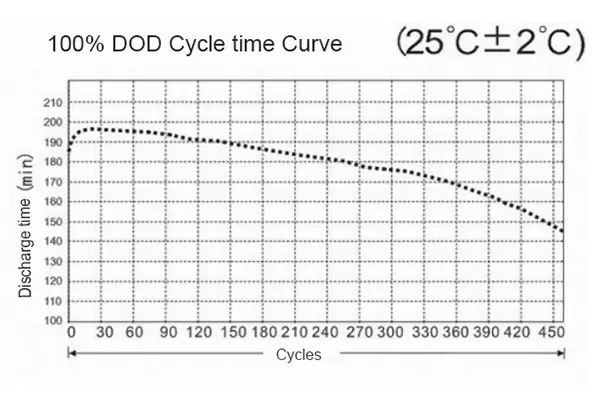

    Cycle Life Curve Motive-Gel-Battery4
    ★Capacity at Different

    Temperature（3hr）
    40℃     103%
    25℃     100%
    0℃      87%
    -15℃    70%
    ★Remaining Capacity after

    Self-discharge（25℃）
    After 3 months 90%
    After 6 months 80%
    After 9 months 63%
