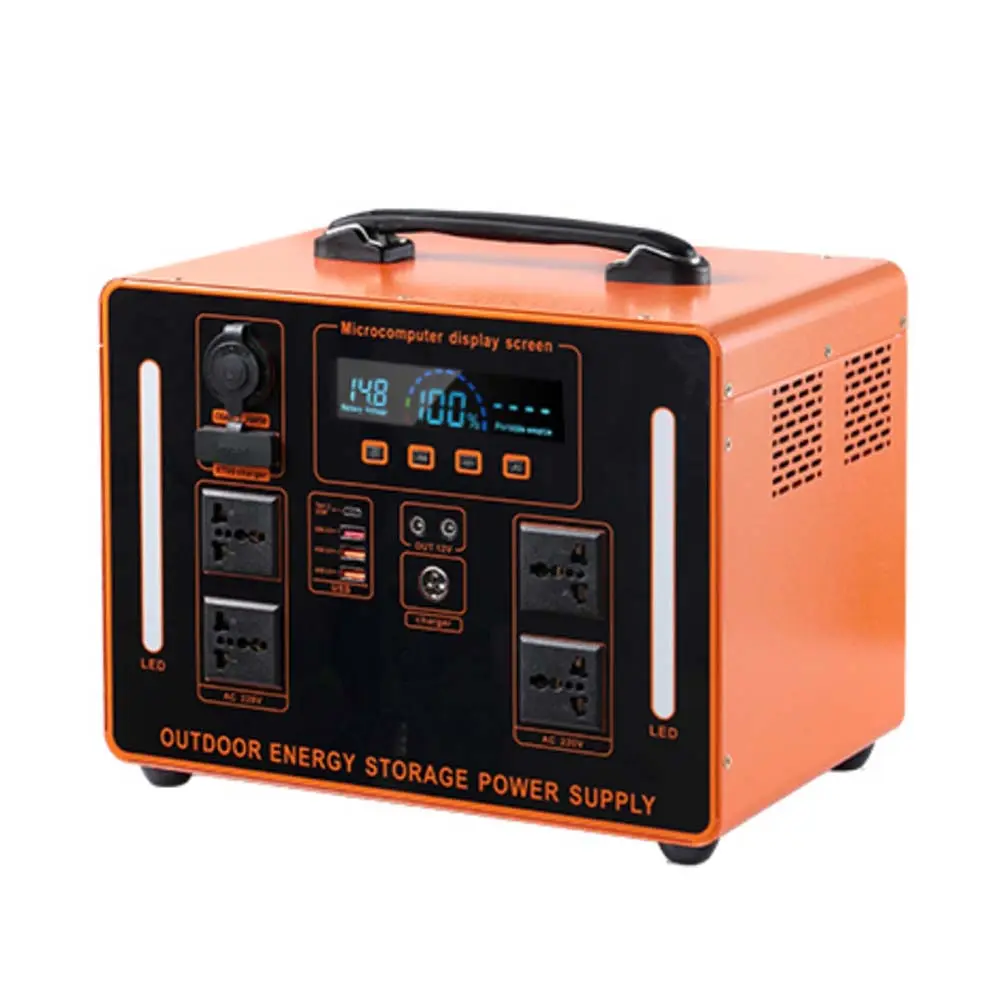

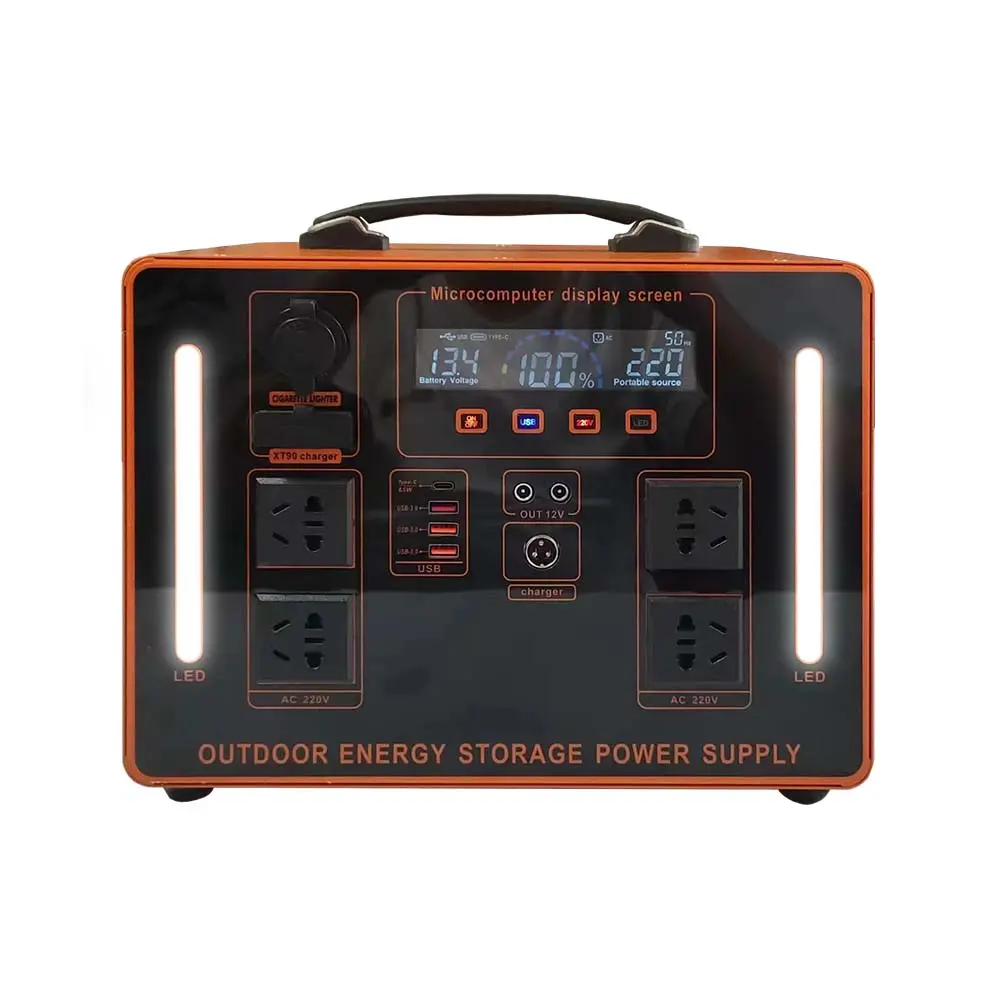

DK-C1600W Portable Solar Power Generator Lithium Lifepo4 Solar Power Station
Product Detail
Technical Parameter
| Technical parameters | ||||
| Model | DK-C1600W-1 | DK-C1600W-2 | DK-C1600W-3 | DK-C1600W-4 |
| Battery capacity | 12.8V/72AH | 12.8V/87AH | 12.8V/120AH | 12.8V/125AH |
| LiFePO4 three yuan Batt(WH) | LiFePO4921.6Wh | LiFePO4 1113.6Wh | LiFePO4 1536Wh | LiFePO4 1600Wh |
| Inverter power | 1600W | |||
| Rated power AC out | AC220V/50Hz/1600W | |||
| PV max power | Solar18V/300W/MAX None (optional) | |||
| Solar panels | None (optional) | |||
| LED light bulbs with wires | None (optional) | |||
| Charging cutoff voltage | LiFePO4 batt single cell/3.65V | |||
| nominal voltage | LiFePO4 batt single cell/3.2V | |||
| Discharge Cut-off Voltage | LiFePO4 batt single cell/2.3V | |||
| Charging protection voltage | 14.6V | |||
| Discharge protection voltage | 9.2V | |||
| MBS intelligent protection | 9.2-14.6V/150A | |||
| MPPT in/DC out | 14.6-24V/20A、12V/10A | |||
| Dedicated charger/Interface | AC100-240V/14.6V/5A/DC5521 | |||
| Type-C /USB | PD64W/USB 5V/3A | |||
| Shell material | Hardware orange+panel black, large display screen | |||
| DC12V/8A*2 | DC5521 | DC5521 | DC5521 | DC5521 |
| AC/DC/LED Switch | have | |||
| LCD display screen, LED lighting | have | |||
| Certification certificate | CE/Rohs/FCC/UN38.3/MSDS/Air and sea freight reports | |||
| Product size | 330*220*255mm | |||
| Product weight | 7.8kg | 10.6kg | 14.7kg | 15.7kg |
Optional Accessories
| Solar panel: 100W with 0.5 meter photovoltaic wire and packaging |
Solar panel 100W |
|
| Solar panel: 150W with 0.5 meter photovoltaic charging cable and packaging |
Solar panel 150W |
|
| Solar panel: 200W with 0.5 meter photovoltaic charging cable and packaging |
Solar panel 200W |
|
| DC head with cable 5 meters+switch+E27 lamp head+light bulb/set |
PCS |
|
| Desktop dual line charger; AC100-240V/14.6v/5A, with wire DC head |
PCS |
|
