Deye Smart meter Single-phase / Three-phase meter sensor

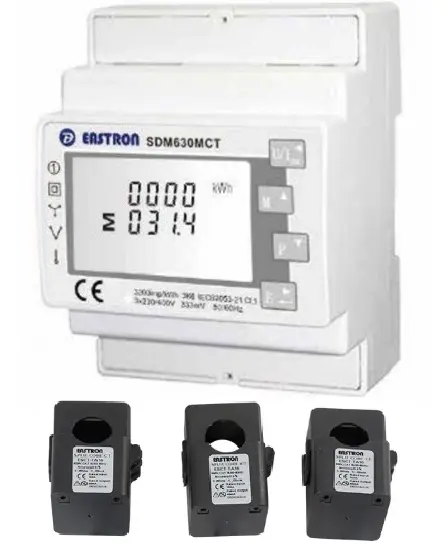

The wattmeter Eastron SDM 630 MCT It is a three-phase meter that accurately shows the electrical consumption of the installation, communicating it to the inverter through the RS485 Modbus protocol. This wattmeter is compatible with DEYE inverters.

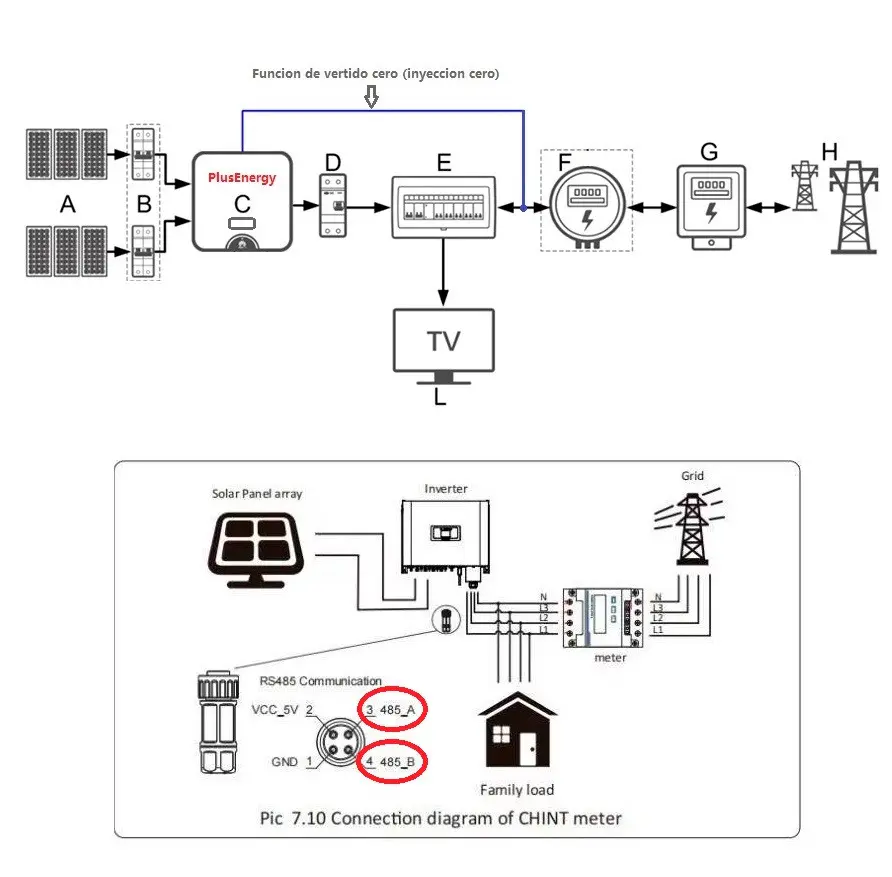

Electrical consumption measurement and fast interface communication allows the inverter limit power to what the facility (business, industrial, residential) is consuming at that moment.
With this EASTRON SDM 630 MCT wattmeter you can choose the possibility of do not pour into the network the unused surplus solar production.

The main characteristics of this wattmeter are:

· Three Phase

· RS485 Modbus

· Up to 9999A with CT

· DIN mounting 35mm

· Accuracy greater than Class 1

· Bidirectional measurement

2.Installation

The installation of this battery model is very simple, however at Wccsolar we recommend that you be installed by a photovoltaic professional, or the installation instructions are strictly followed to avoid poor connections and breakdowns due to incorrect installation.

3.Buy PlusEnergy

Buy It is fast, safe and comfortable thanks to Wccsolar, in addition  It has an official Wccsolar guarantee.

General specifications
Dimensions (height x width x depth) 100 x 36 x 65,5 mm
Mounting type DIN35 rail
Weight (including cables) 1,2 kg
Fuente de alimentación
Mains type 1P2W
Input power (phase voltage) 176 VAC ~ 288 VAC
Power consumption ≤ 0,8W
Measuring range
Line voltage /
Phase voltage 176 VAC ~ 288 VAC
Current 0 ~ 100 A
Measurement accuracy
Voltage ±0,5%
Current / Power / Energy ±1%
Frequency ±0,01 Hz
Communication
RS485 interface
Baud rate 9600 bps
Modbus – RTU communication protocol
Environment
Operating temperature range -25°C ~ 60°C
Storage temperature range -40°C ~ 70°C
Operating humidity 5% RH ~ 95% RH (non-condensing)
