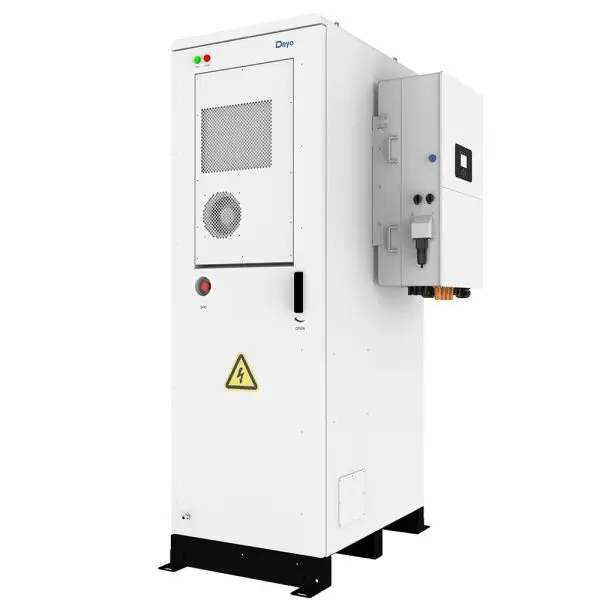

DEYE GE-F60 60KWH Pack

The GE-F60 energy storage system (ESS) is a revolutionary solution designed for high-rate cyclic charging and discharging scenarios. This innovative system harnesses the power of lithium iron phosphate (LiFePO4) technology, delivering superior performance, exceptional safety and unmatched flexibility.

2.Main Features

· High performance: With a nominal module capacity of 5,12 kWh, the GE-F60 can be configured to deliver a total energy capacity of up to 61,44 kWh. This makes it ideal for a wide range of applications, from residential to commercial.

· flexible configuration: Expandable up to 12 battery modules in series, the GE-F60 can achieve a maximum operating capacity of 360 kWh. It also supports off-grid configurations with potential expansion to 500 kW/600 kWh, making it adaptable to various energy needs.

· Wide operating temperature range: The GE-F60 performs optimally in extreme environments, with a charging temperature range of 0°C to 55°C and a discharging range of -20°C to 55°C. This ensures reliability and efficiency in a variety of climates.

· Unparalleled security: Equipped with advanced safety features such as combustible gas detection, smoke and temperature alarms and an aerosol fire extinguishing system, the GE-F60 prioritizes user safety and environmental protection.

· Intelligent Management Systems: The sophisticated battery management system (BMS) ensures efficient operation with power supply redundancy, black start capabilities and off-grid functionality. It also provides real-time monitoring of system status and performance.

· Robust Durability: With an IP55 rating and a lifespan of over 6000 cycles, the GE-F60 is designed for longevity and durability, offering a solid return on investment.

· Simplified installation: The floor-mounted design and compact dimensions (735 mm x 1045 mm x 2235 mm) allow for seamless integration into existing systems.

3.Technical Specifications

· Cell chemistry: lithium iron phosphate (LiFePO4)

· Battery Module Specifications:
1.Energy capacity: 5,12 kWh
2.Nominal voltage: 51,2 V
3.Capacity: 100 Ah

· System voltage: 480-700V

· Weight: Approximately 1010 kg

· Operating humidity range: 5% to 85% RH

· Warranty: 10 years

· Certifications: UN38.3, CB, CE, CEC, IEC62040
The GE-F60 energy storage system is the ideal choice for those looking for a reliable, efficient and secure solution for their energy storage needs. Whether you want to improve your residential energy setup, optimize business operations or establish an effective off-grid system, the GE-F60 offers unmatched performance and versatility.
