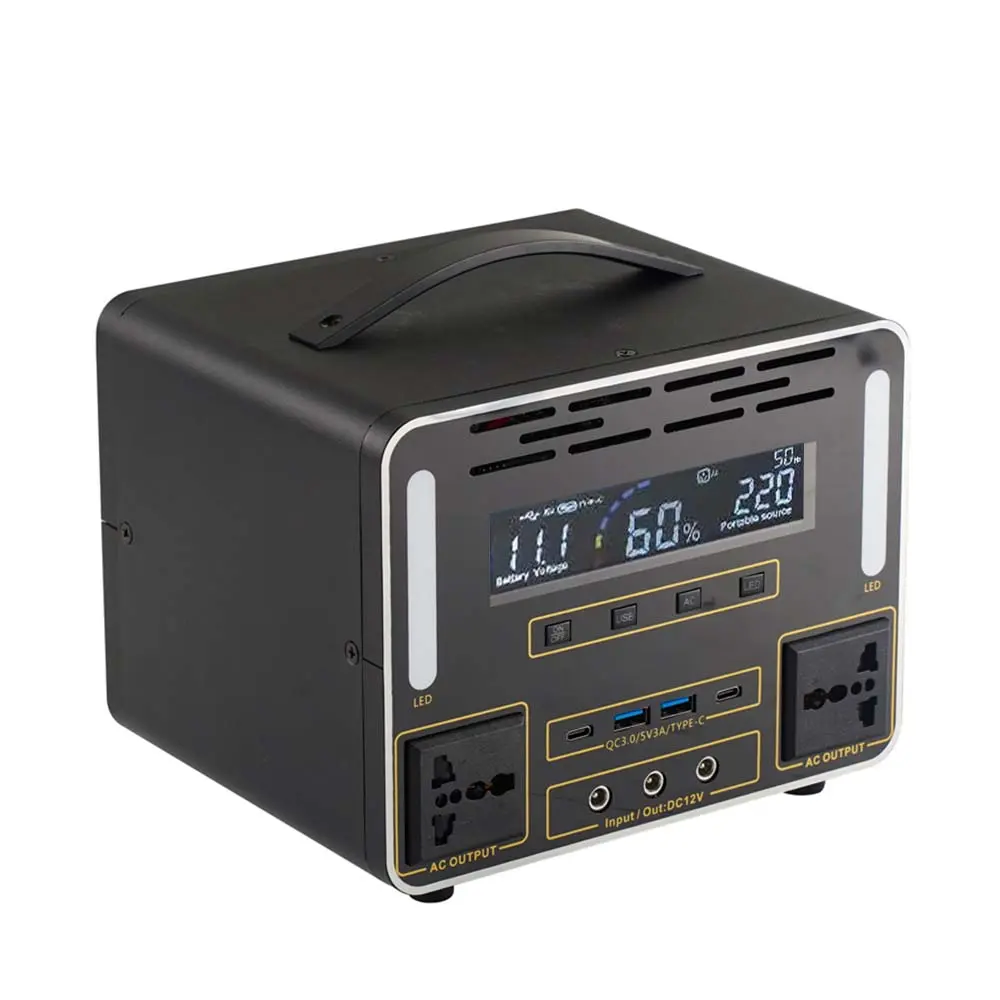

DK-C500W Portable Solar Power Generator Lithium Lifepo4 Solar Power Station

◆Energy storage power supply, mobile and portable, convenient for use and travel

◆Adopting MPPT’s advanced tracking algorithm, the power generation efficiency is improved by 20%

◆PV IN/18V,2 large display screens, 2 interface options

◆BMS intelligent battery management function extends battery life

◆Out: LED lighting，USB5V，DC12V，AC220V/500W

◆Suitable for indoor and outdoor use: mobile phone charging, lighting speakers, computer fans, rice cookers, electric tools, etc

Product Detail

Technical parameters
Model	DK-C500W-1	DK-C500W-2	DK-C500W-3	DK-C500W-4
Inverter power	500W
Rated power AC out	AC220V/50Hz/500W
Battery capacity	12.8V/15AH	12.8V/20AH	12.8V/26AH	12.8V/30AH
LiFePO4 Batt(WH)	192Wh	256Wh	332.8Wh	384Wh
PV max power	Solar18V/160W/MAX
Solar panels	None (optional)
LED light bulbs with wires	None (optional)
Charging cutoff voltage	LiFePO4 batt single cell/3.65V
nominal voltage	LiFePO4 batt single cell/3.2V
Discharge Cut-off Voltage	LiFePO4 batt single cell/2.3V
Charging protection voltage	14.6V
Discharge protection voltage	9.2V
MBS intelligent protection	9.2-14.6V/50A
MPPT in/DC out	12.6-24V/10A、12V/8A
Dedicated charger/Interface	AC100-240V/14.6V/5A/DC5521
Type-C /USB	PD18W/USB 5V/3A
Shell material	Hardware black, 2 large display screens, 2 interface options
DC12V/8A*2	DC5521	DC5521	DC5521	DC5521
AC/DC Switch	have
LCD display screen, LED lighting	have
Certification certificate	CE/Rohs/FCC/UN38.3/MSDS/Air and sea freight reports
Product size	210170170mm
Product weight	4.8kg	5kg	5.4kg	6.3kg

Solar panel: 100W with 0.5 meter photovoltaic wire and packaging	Solar panel 100W
Solar panel: 150W with 0.5 meter photovoltaic charging cable and packaging	Solar panel 150W
Solar panel: 200W with 0.5 meter photovoltaic charging cable and packaging	Solar panel 200W
DC head with cable 5 meters+switch+E27 lamp head+light bulb/set	PCS
Desktop dual line charger; AC100-240V/14.6v/5A, with wire DC head	PCS
